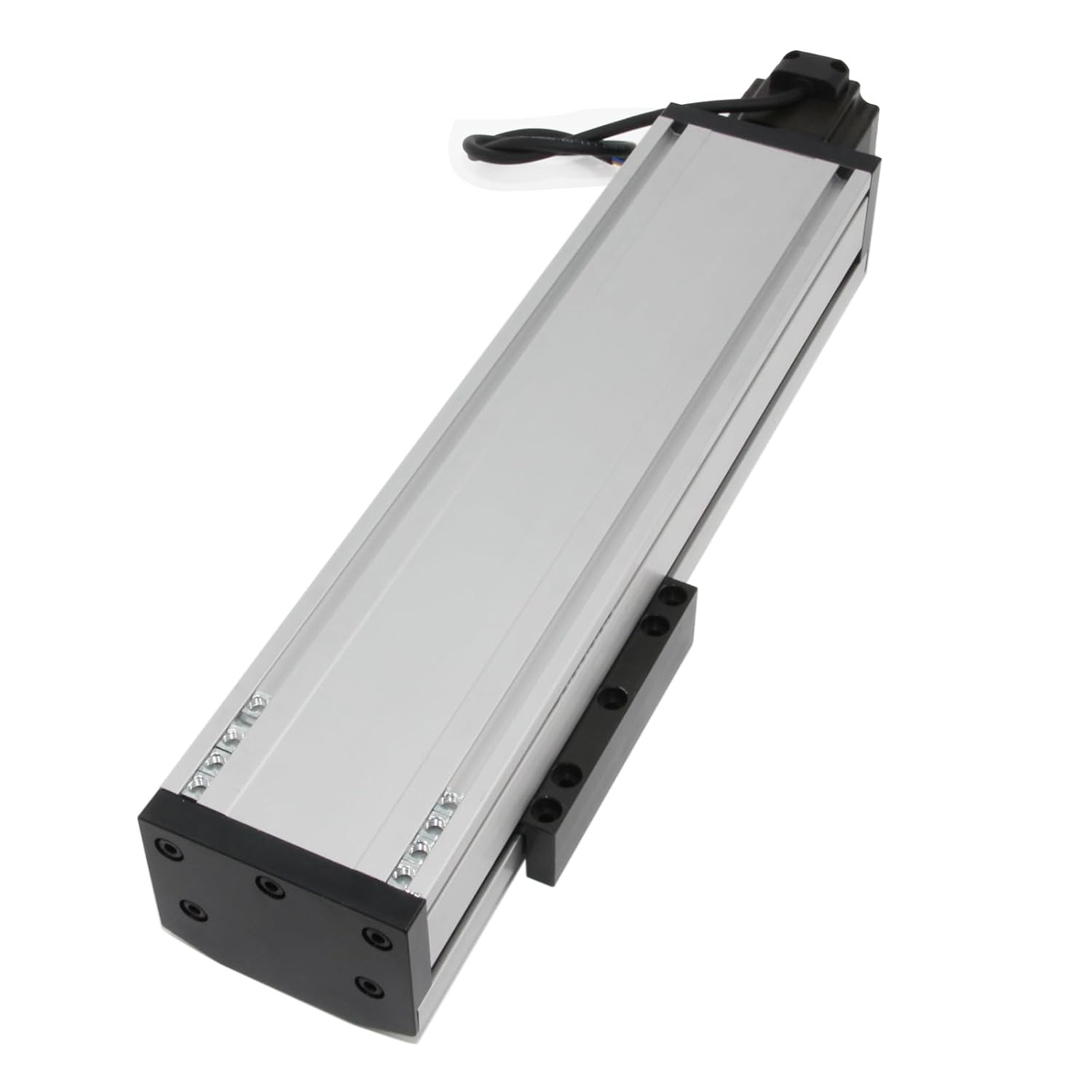

200mm Length Travel Fully Enclosed Double Linear Stage Actuator with Square Linear Rails Ballscrew SFU1605 with NEMA23 Stepper Motor for CNC Router Parts X Y Z Axis
Product details
| Management number | 211204738 | Release Date | 2026/04/04 | List Price | $79.52 | Model Number | 211204738 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Stepper motor Parameter: Step angle: 1.8 degree Motor flange size: 57mm Motor length: 56mm Holding torque: 1.2N.m Voltage:DC 24VCurrent: 3A Resistance: 0.8 ohm Inductance: 2.4 mH Rotor Inertia: 440g.cm Lead wire: 4pcs Wiring: Red: A+ Green: A- Yellow: B+ Blue: B-Double Linear Stage Actuator Parameter: Effective Travel Length: 200mm Total length :450mm Type: linear system moulde Ballscrew type: SFU1605 (diameter:16mm, pitch of screw:5mm) Level ballscrew: c7 Package Content: 1pcs Double Linear Stage Actuator with NEMA23 Stepper Motor
- High precision, heavy load resistance SFU1605, Horizontal maximum load capacity: 40kg; Vertical maximum load capacity: 20kg
- Repeat positioning accuracy of ± 0.03mm
- Speed: 0-100mm/s

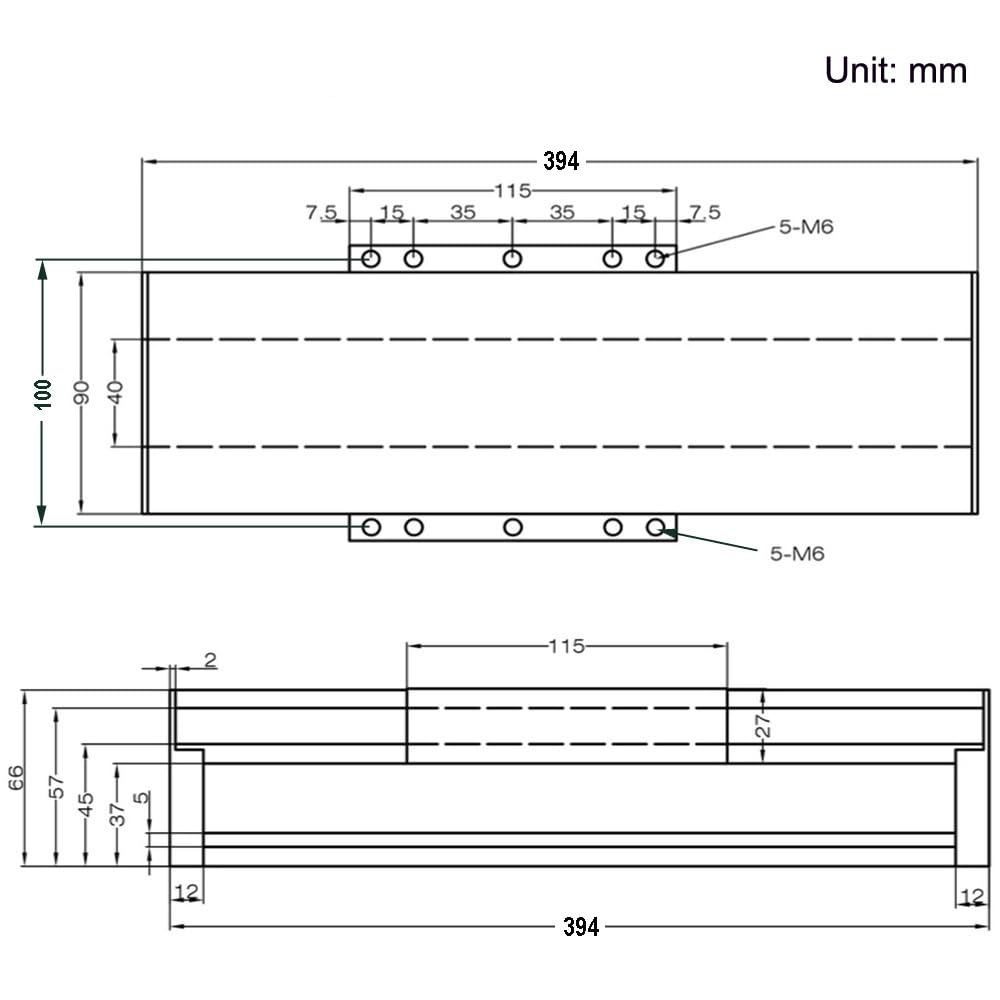

- 10pcs M6 threaded hole to fix the workpiece
- Effective stroke:200mm, Lead:5mm ( The lead screw moves 5mm in one turn)
| Item Weight | 10.09 pounds |
|---|---|
| Manufacturer | Befenybay |
| Package Dimensions | 18.5 x 4.72 x 3.15 inches |
