CCTV Camera Tester, WANLUTECH 8MP TVI CVI AHD SDI CVBS Analog Camera Tester 5 inch TFT-LCD Screen Support Cable Tracer UTP Cable Tester PTZ Control HDMI in VGA in RS485 (HD-3200C)
$205.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by drparvizdubai.com
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$205.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by drparvizdubai.com
Free 30-day returns Details
Product details
| Management number | 211731051 | Release Date | 2026/04/04 | List Price | $82.40 | Model Number | 211731051 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- [ SDI AHD TVI CVI Camera Tester ] WANLUTECH CCTV camera tester supports to test max 8MP SDI AHD CVI TVI coaxial camera. Using HD app can automatically recognize AHD CVI TVI cameras and display resolution and frame rate on the screen, support coaxial PTZ & call OSD menu. PLEASE NOTE the tester does not support to test IP network camera
- [ CVBS Analog Camera Test ] Support CVBS camera tester. 1 channel BNC input, NTSC/PAL (Auto adapt). PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as for PELCO-D/P, Samsung, Panasonic, etc

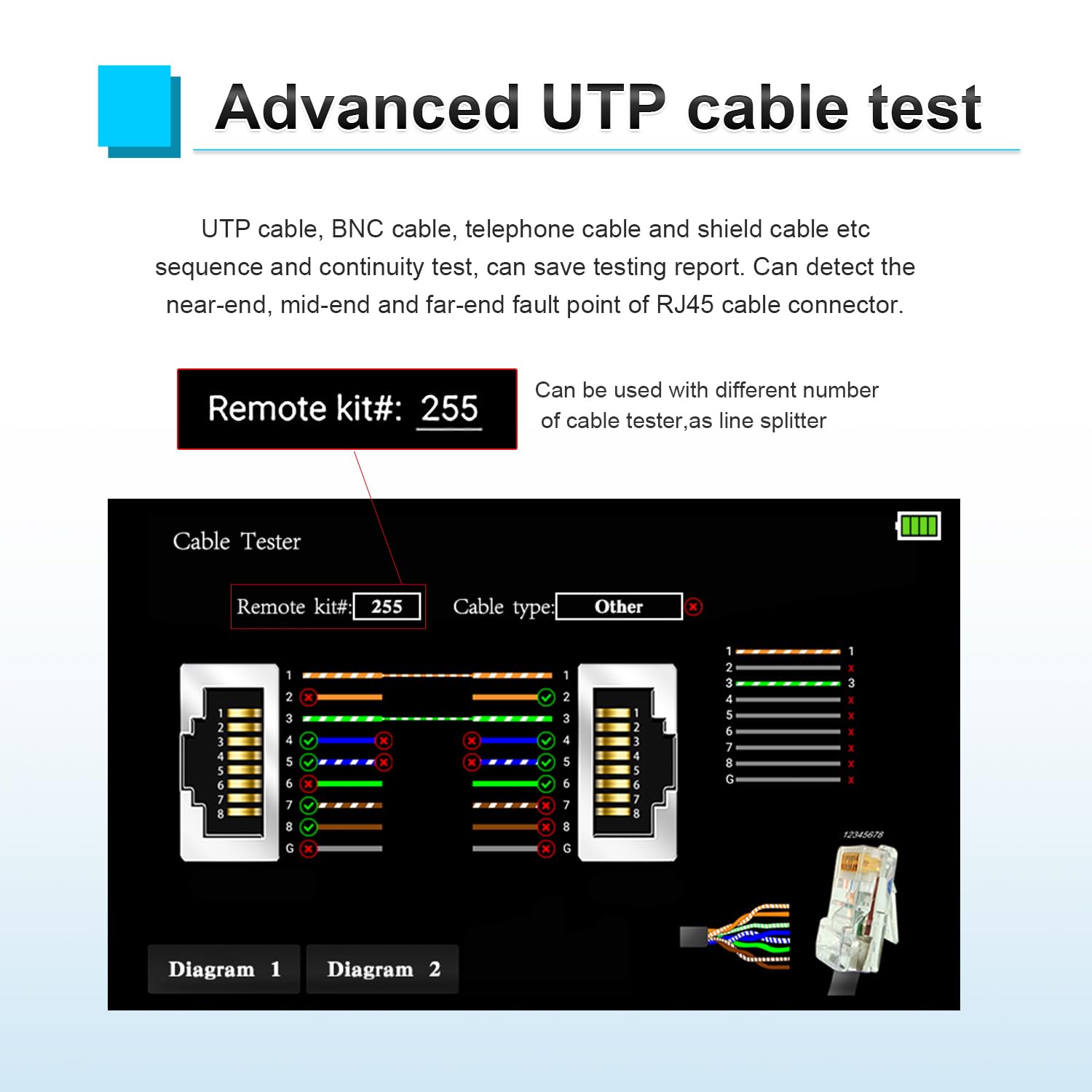

- [ UTP Cable Tester & Cable Tracer ] Support to test UTP cable connection status and display on the tester screen. Support to detect the near-end, mid-end and far-end fault point of RJ45 cable plug. Support search BNC cable, network cable and telephone cable from the mess cables

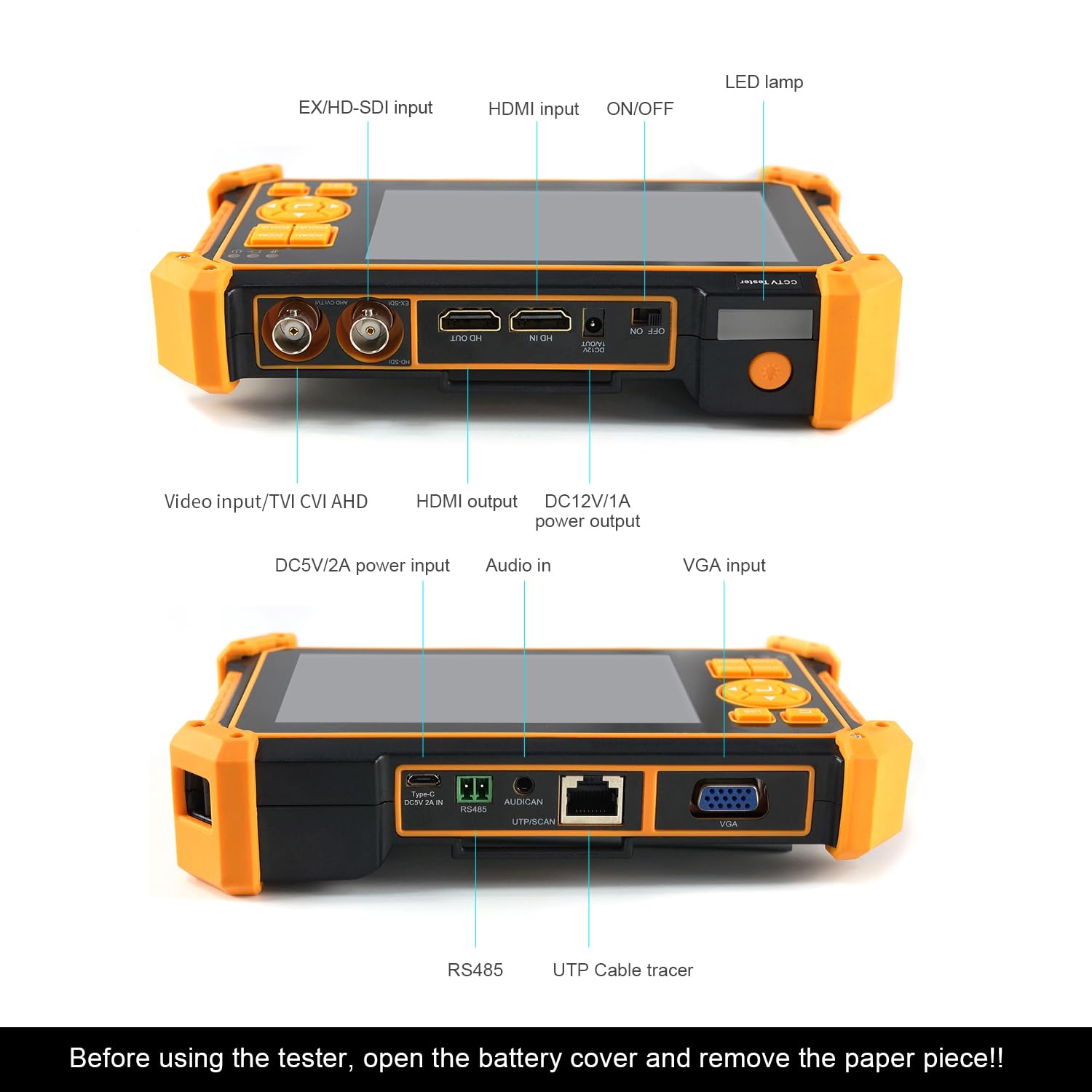

- [ Multifunction CCTV Tools ] HDMI INPUT, support max 4K 30fps. HDMI OUTPUT, support max 1080P. VGA INPUT, support max 1920 x 1200P 60FPS. Support audio test, 1 channel audio signal input, test the audio whether is normal. Built-in 3.7V/5200mAh battery. Power output: DC 12V/1A, the cctv tester temporarily powers the camera. Power input: 5V/2A. 5 inches TFT-LCD screen, 800x480 resolution
- [ PLEASE NOTE ] There is a paper piece isolating the battery. Before using the tester, open the battery cover and remove the paper sheet. We are the manufacturer. Any questions, please let us know, We'll get back to you within 12 hours
