Inkbird ITC-106VH PID Temperature Thermostat Controllers F and C 100 to 240ACV K Sensor 40DA SSR Solid State Relay for Sous Vide Home Brewing

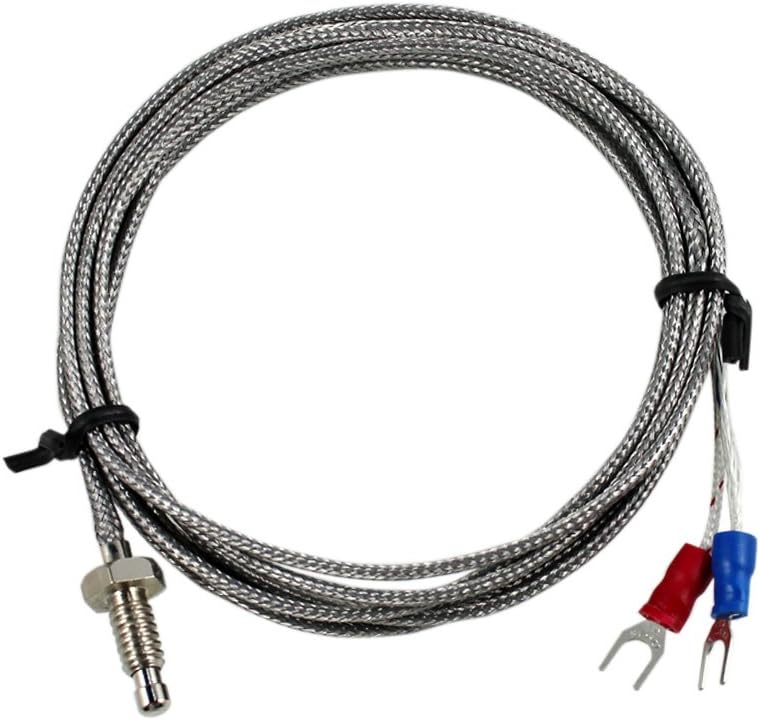

Notes: ITC-106 is not suit for industrial use. Specification Front Panel Dimension: DIN 48mm(W)X48mm(L) Power Supply Voltage: AC 100-240V 50/60Hz Operating voltage range： 85～110% Rated voltage Power Consumption： Approx. 5VA（100～240VAC） Character: PV: 4 digital 9.9mm height Red LED Letters SV: 4 digital 8mm height Green LED Letters Display Accuracy: ±0.2%FS 0.1ºC（＜1000ºC）；1ºC（≥1000ºC） Period of Sampling： 0.5S Temperature Compensation： 0-50ºC Life expectancy of Relay: Mechanical≥10,000,000 operations Electrical≥10,000,000 operations Weight: Approx. 140g Environmental Conditions: -10～55ºC（no icy or condensation）, RH 35-85% Humidity Storage Temperature: -25～65ºC（no icy or condensation） Data Storage: 10year Cutout size: 45x45mm Mounting Method: Flush mounting and screw terminals K-Type Thermocouple Temperature Sensing For Temperature Controller Temperature rang :0-400 C Sensor Dia: 4.5mm Cable Length: 2m(6.6ft) External Shielding: Insulated Shielding Internal Insulation:Fiberglass40A SSR SOLID STATE RELAY for temperature controller Specifications: Load Voltage: 24-380VAC Load Current: 40A Input Voltage: DC 3-32V Pacakge: 1x Inkbird ITC-106VH Controller 1x 40A SSR1x Mounting bracket 1 x K sensor 1x Manual

• Support reading with Centigrade or Fahrenheit unit.It is more suitable for setups with water cycle. If the device does not have water cycle, the ITC-100 series is recommended
• Dual display window, be able to display measured temperature and set temperature at the same time
• Simplify operational processes and you don't need to operate more steps if you want to set the definite value
• High accuracy of displaying and controlling. Manual and Auto turning are available
• Power Supply Voltage: AC 100-240 V 50/60 Hz
